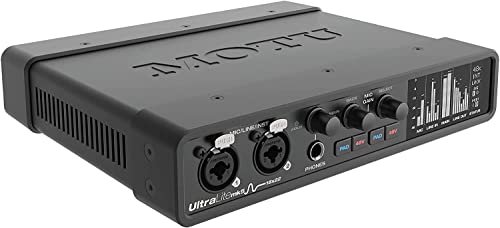

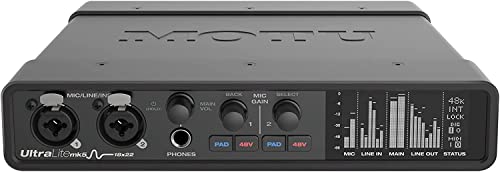

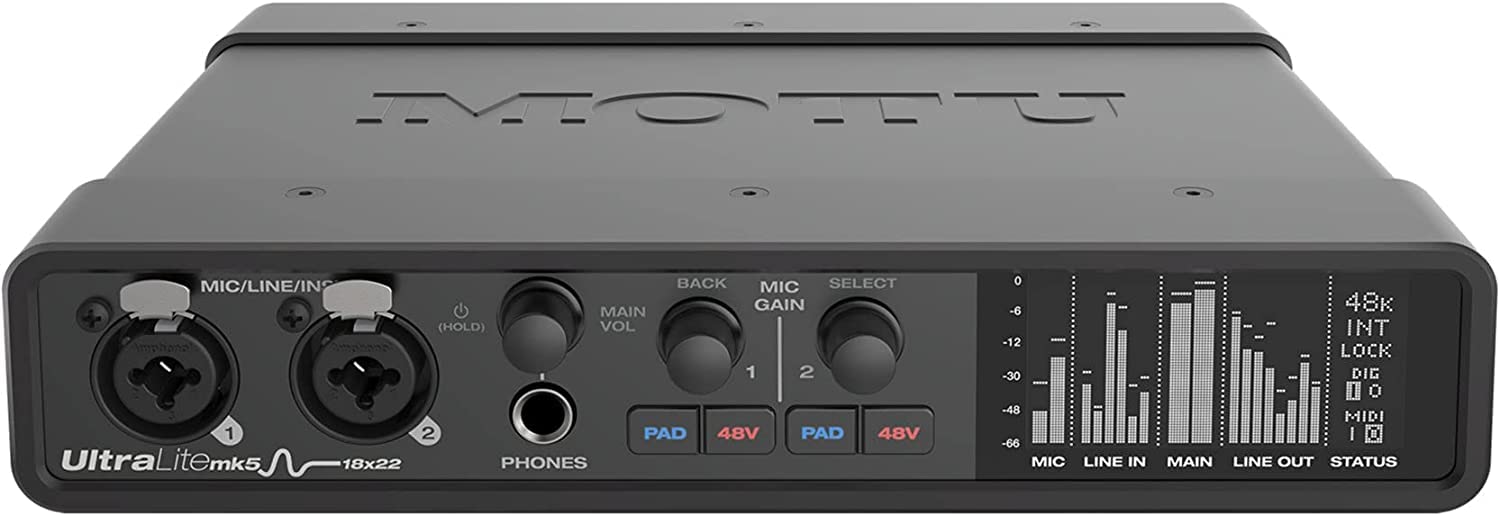

MOTU UltraLite-mk5 18×22 USB Audio Interface 3 for Mac, Windows and iOS with mixing and effects

Superb audio quality

The UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N. Renowned drivers deliver rock-solid performance and industry-leading low latency.

Ultra-low latency

Optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk5 delivers an astonishing round trip latency (RTL) of 2.4 ms (milliseconds) over USB (at 96 kHz with a 32-sample host buffer).

Built for studio and stage

Housed in a compact, steel enclosure you can take anywhere, the UltraLite-mk5 is equally well-suited for studio and stage, with or without a computer. Connect all your personal studio gear for state-of-the art computer-based recording and production, or take it to your next gig to mix live, without a computer.

40 audio channels

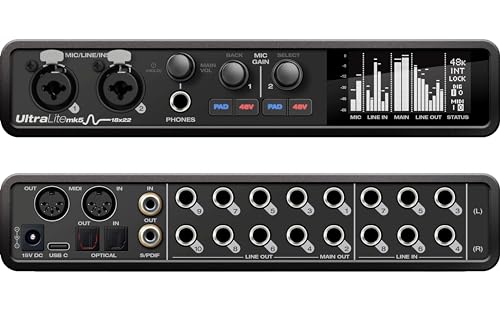

As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 simultaneous, independent I/O channels. You get 2 mic/line/instrument inputs, 6 line inputs, 10 line outputs, headphone out and 8-channel optical I/O. The optical ports alternatively support stereo TOSLink (optical S/PDIF).

iOS compatibility

The UltraLite-mk5 is USB audio class compliant, giving you plug-and-play compatibility with iPad and other Apple iOS devices. Record on-the-go, directly to your iPad, or play backing tracks during a gig, mixed with your live inputs with the UltraLite-mk5’s built-in mixing. Control everything from the CueMix 5 mixing app on your iPad or iPhone.

Loopback

The UltraLite-mk5 provides convenient loopback channels to your host computer or iOS device, so you can easily route computer output, along with a mix of live inputs from the UltraLite-mk5 itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet. Streaming and podcasting has never been easier and better-sounding!

Monitor Mixing with Effects

The CueMix 5 app gives you simple, yet comprehensive graphic control over your mix. CueMix 5 is a completely new app with attractive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface for quick access to all mixing features, digitally controlled trims and other settings in your UltraLite-mk5.

Half-rack Mounting Kit

(Sold separately) Ready for serious touring, the steel-encased UltraLite-mk5 can be rack-mounted with thick, steel brackets designed to withstand the punishment on the road ahead.

Half-rack Coupler Kit

(Sold separately) Join two UltraLite-mk5 units together, side by side, to fill a space in your rack or road case. Thick steel brackets ensure everything connects solidly.

Solid metal construction

Mount the UltraLite-mk5 with confidence, knowing the unit is built with hardened aluminum alloy end caps and a thick steel casing.

Workstation software, virtual instruments and loops included

Start making music right away!
