Product description

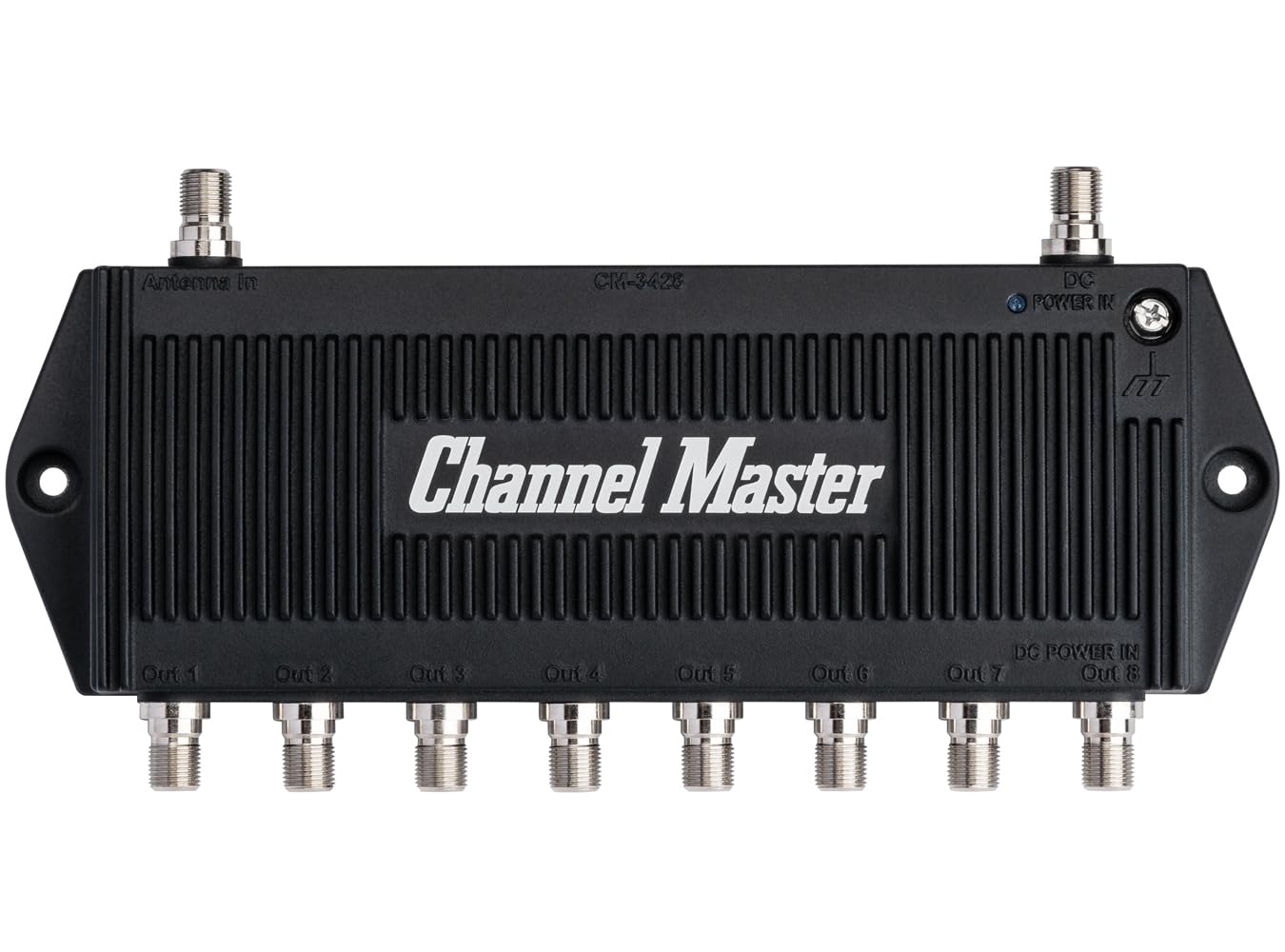

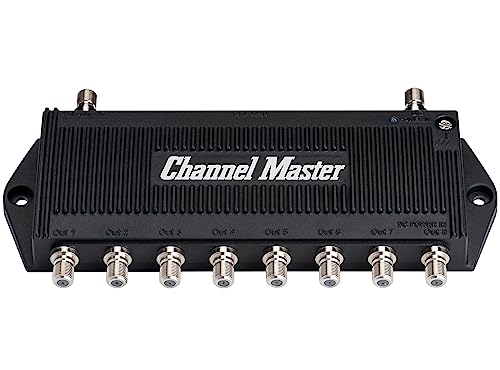

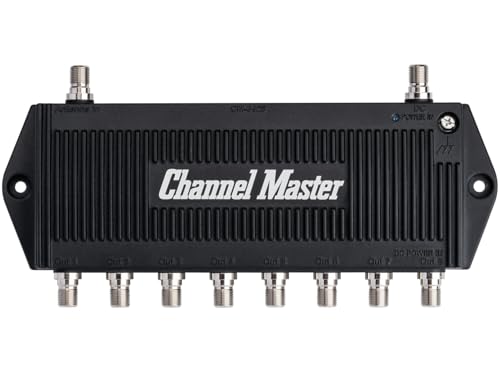

TV Antenna Booster 8
Description

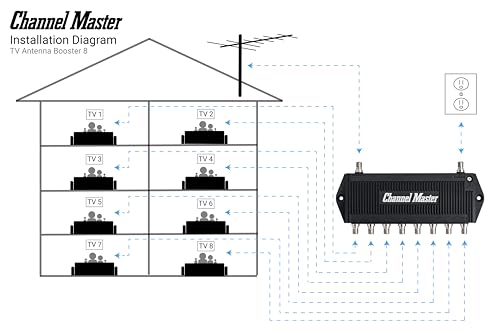

The Channel Master TV Antenna Booster 8 is a professional-grade distribution amplifier. It’s used to split a TV antenna signal into eight outputs without losing signal strength. It includes built-in out-of-band filters & a 4G/5G LTE interference filter. The heavy-duty weatherproof housing accommodates installation outdoors as well as indoors.
What’s Included
• TV Antenna Booster 8 Distribution Amplifier
• 6ft RG6 Coaxial Cable & Power Adapter
• User Guide
Features
• Eight Amplified Outputs
• Splits TV Antenna to 8 Rooms while Boosting Signals (Replaces Standard 8-Way Splitters)
• 8 Amplified Outputs Exclusively for TV Antennas (Not Compatible with Cable or Satellite)
• Out-of-Band Filters Including FM & LTE Signals (600 MHz)
• Passive Signal Backup (Passes Signal During Loss of Power)
• Supports ATSC 3.0 & NextGen TV Broadcasts when Available
Specifications
- Power Supply Input Voltage: 110-240v, AC ~ 50/60Hz, 200mA (Max)
- Power Supply Output Voltage: +13.2v DC, 500mA, 6.6W (Max)
- Frequency Bandpass: 54-88MHz, 174-216MHz, 470-608MHz. (Filters / Signal Attenuation Applied)
- Gain: +4.5dB per Output
- Noise Figure: Typically Less Than 2dB
- Max Input Level: 10dBmv
- Max Output Level: 21.5dBmv
- Operating Temperature: -40° to +140°F
