AVMATRIX SE1217 SDI Streaming Encoder; Supports Stream Encode Protocol, Up to 1080p60hz; Video and Audio Streaming or Single Audio Streaming; Image and Text Overlay; Mirror Image & Upside-Down Image

AVMATRIX SE1217 H.265/H.264 HDMI Streaming Encoder; 1x HDMI Iinput, 1x HDMI Loop Out, 1x Analog Audio Input; Supports H.265/H.264 Stream Encode Protocol, Up to 1080p60hz; Image and Text Overlay

Key Features
– 1x HDMI input, 1x HDMI loop out, 1x Analog audio input
– Supports H.265/H.264 stream encode protocol, up to 1080p60hz
– Dual-stream (main stream and sub stream)
– RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
– Video and audio streaming or single audio streaming
– Image and text overlay
– Mirror image & upside-down image
– Live stream with no need for connecting a computer

Specifications
– Video Input: HDMI Type A x1
– Video Loop Out: HDMI Type A x1
– Analog Audio In: 3.5mm (line in) x1
– Network: RJ-45 x1(100/1000Mbps self-adaptive Ethernet)
– HDMI In Format Support: 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976; 1080i 50/59.94/60; 720p 60/59.94/50/30/29.97/25/24/23.98; 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
– Video Coding: H.265/H.264
– Video Bitrate: 16Kbps ~ 12MKbps
– Audio Coding: ACC/MP3/MP2/G711
– Audio Bitrate: 24Kbps ~ 320Kbps
– Encoding Resolution: 1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360
– Encoding Frame Rate: 5-60fps
– Network Protocols: HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
– Configuration Management: Web configuration, Remote upgrade
– Consumption: 5W
– Temperature: Working temp: -10°C~60°C, Storage temp: -20°C~70°C
– Dimension (LxWxD): 104×75.5×24.5mm
– Net weight: 310g
– Gross weight: 690g

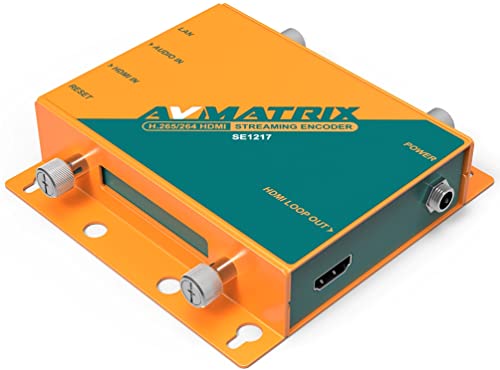

– Accessories: 12V 2A power supply; Mounting bracket for optional
